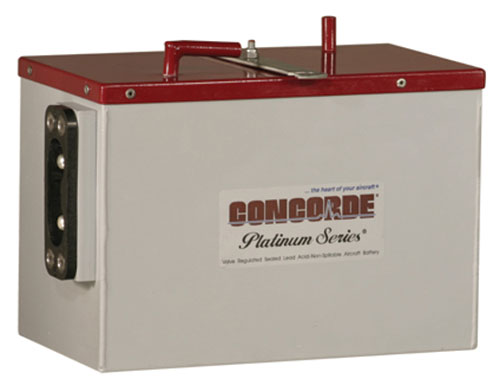

Concorde Battery RG-206
Pooleys stock code: CON160
This product is not available for guaranteed next day delivery. Please phone 0208 207 3749 to confirm availability & expected delivery date.
PLEASE NOTE: DUE TO SHIPPING RESTRICTIONS THIS PRODUCT CAN ONLY BE SUPPLIED BY COURIER TO THE UK MAINLAND.
The RG-206 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.
Superior starting power Reliable essential power in the event of a generator failure Low impedance design Maintenance free Constructed with non removable vent valves - no addition of electrolyte or water required Aerobatic: Non spillable at any altitude or attitude Factory tested to assure airworthiness Shipped fully charged and ready to install.
The RG-206 Aircraft Battery from Concorde® Battery Corporation
The RG-206 is a Concorde® Platinum Series® Aircraft Battery. The Platinum Series® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.RG-206 Battery Specifications:
| Primary Aircraft Purpose | Helicopter and Turbine Aircraft Battery |
| Voltage | 24v |
| Rated Capacity C1 = 1 hr. rate in ampere hours |
17.00 |
| Max Weight | 42.00 lbs / 19.1 kg |
| Concorde® Battery Part Number |
IPP | IPR | IPP | IPR | IPP | IPR |
| 23°C (74°F) | -18°C (0°F) | -30°C (-22°F) | ||||
| A | A | A | A | A | A | |
| RG-206 | 900 | 625 | 600 | 425 | 450 | 300 |
Specifications subject to change without notice.
Related Information:
Printable RG-206 Battery Specifications
RG-206 Battery Outline Drawing (PDF)
RG-206 Transportation Information
RG-206 SDS
IPP and IPR (International Electrotechnical Commission (IEC) Standard 952-1) Ratings Defined
Aircraft Battery Applications:
RG-206 Certified Battery Installations.
Click Here to See if this Battery Fits in Your Airplane
Click Here to See if this Battery is Certified for Your Airplane
Description of the RG-206 Aircraft Battery:
Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.- Superior starting power
- Reliable essential power in the event of a generator failure
- Low impedance design
- Maintenance free
- Constructed with non removable vent valves - no addition of electrolyte or water required
- Aerobatic: Non spillable at any altitude or attitude
- Factory tested to assure airworthiness
- Shipped fully charged and ready to install
- Manufactured with absorbed glass mat separators (AGM)
- RG® Series batteries ship non-HAZMAT.
RG-206 is housed in an aluminum container with MS3509 terminal receptacle and cover with top hold down bar. The battery cover is attached to the container with high retention rivets. Vent tubes are integrated into the cover.
The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
£2,452.29 £2,942.75 inc. VAT (20%)*
