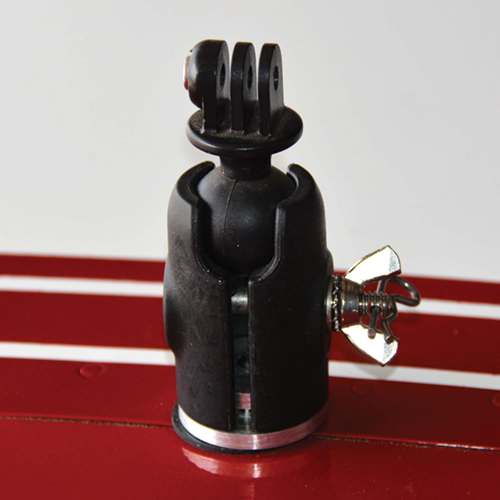

The MyPilotPro Aviator GoPro Airplane Mount is one of the most requested mounts we have ever had! The Aviator attaches to an existing inspection plate on your aircraft. Each mount puck is precisely CNC milled from a single aircraft aluminium billet and is coupled with stainless steel hardware. We are Ram Mount® authorised partners and we teamed up with them to add the GoPro camera swivel arm which allows you to point your camera in virtually any angle and direction. A neoprene washer ensures that any vibration can not make its way to the camera and also prevents any marring to your inspection plate.
- Mounts to aircraft inspection plates
- Mount puck body CNC milled from a single aluminum billet
- Stainless steel hardware
- Our lightest exterior mount – 2.9 oz including all hardware
- 1.375″ wide and 3.5″ tall
- Lifetime guarantee
Easy to Securely Attach

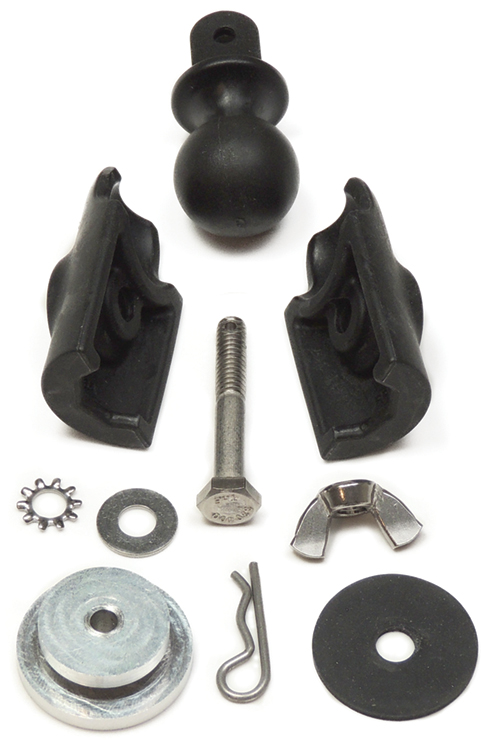

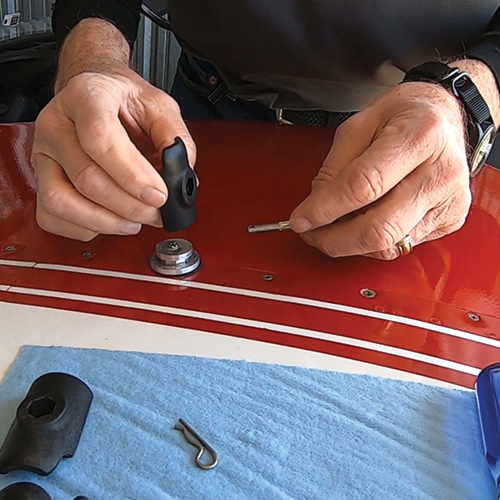

Attaching the MyPilotPro Aviator to an inspection plate is a straight forward process which should involve your A&P mechanic and a simple logbook entry. Disassemble the entire mount assembly so that the aluminium mounting puck is by itself. Unscrew an existing inspection plate screw (typically a #8 screw) and replace it with one that is 1/2″ longer (not included). Insert the replacement screw through the center hole in the CNC milled mounting puck. Ensure the neoprene washer is between the mount base and the inspection plate and screw the mounting puck assembly back into into the existing inspection plate threads. You can now reassemble the entire mount onto to the puck including the swivel arm halves, the swivel ball, and the stainless steel hardware.

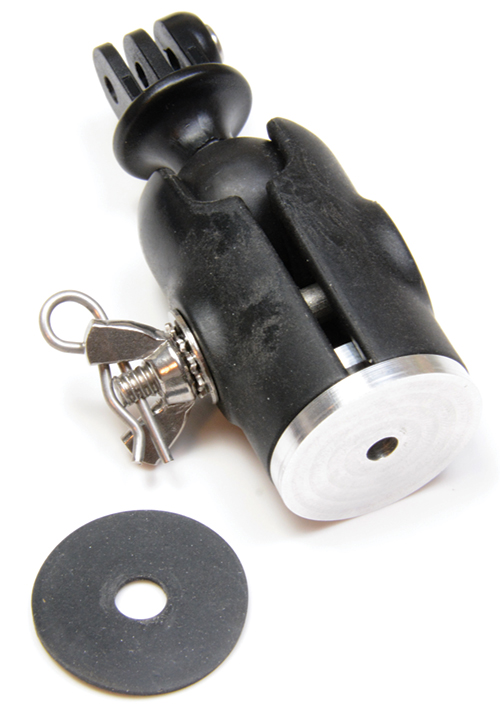

The mount also comes with a safety hair pin that prevents the mount from coming off the mounting puck. After you have reassembled the mount to the puck and firmly tightened the wig nut, insert the stainless steel hair pin into the hole at the end of the threaded bolt. The hair pin ensures that the wing nut securing the entire mount assembly to the inspection plate puck can not come loose.
Universal and Compact

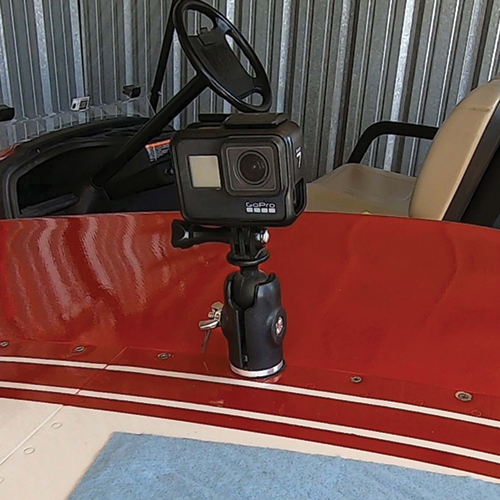

This mount is compatible with all action cameras including GoPro and is universal for all General Aviation and Light Sport Aircraft. If your aircraft has an inspection plate, the MyPilotPro Aviator can attach to it. It weighs just 2.9 oz including all hardware and fits in the palm of your hand.
Guaranteed
All our products are American made and assembled with American labor one at a time in our Montana shop. We pride ourselves in sourcing our materials from American companies as well. Because we control the whole manufacturing process from sourcing materials to final assembly, we guarantee all our products with a lifetime guarantee.
