Complete Kit with Tab-tite Holder for Google Nexus 7

Pooleys stock code: RAM-HOL-TAB16KIT

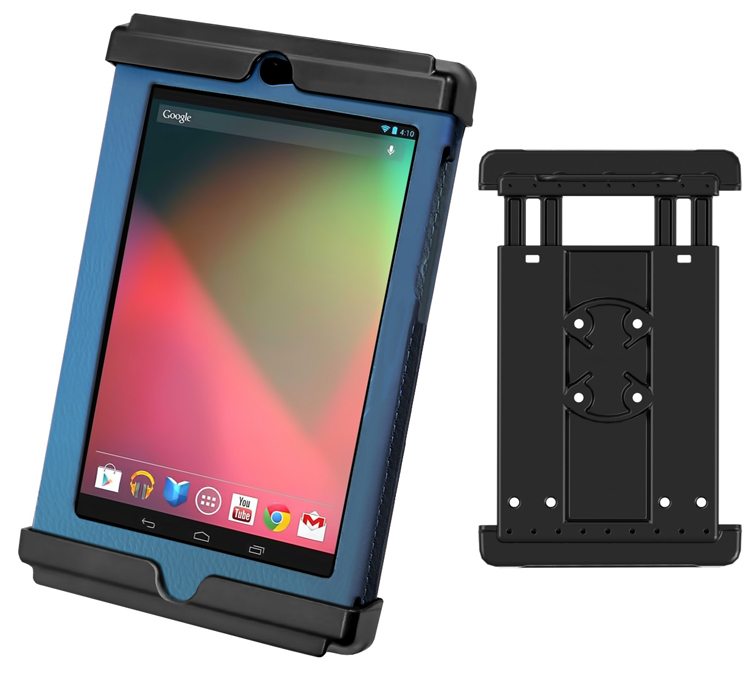

The RAM-HOL-TAB16 consists of a spring loaded back plate and custom support cups for the Google Nexus 7 with heavy duty case. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimise the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this holder is just what you need to get the most out of your tablet.

This holder is compatible with the following tablets:
Google Nexus 7 WITH HEAVY DUTY CASE
Google Nexus 7 GEN 2 WITH HEAVY DUTY CASE

Any tablet or reader that suits the dimensions below:

Supported Dimensions:
Height: 7.12" minimum to 8.875" maximum
Width: maximum to 5.05"
Depth: maximum to 0.82"

Features:
1. Support cups contain open slots to accommodate for tablets of various sizes
2. Back plate can support various size support cups
3. Spring loaded tension provides secure support for your tablet
4. Spring loaded holder allows for quick release of your tablet
5. High strength materials maximise longevity of holder
6. Full access to all ports
7. Lifetime warranty

Material:
High Strength Composite

ACCESSORY: Round connecting plate.

ARM: The standard double socket arm, has a socket at both ends that accommodates connecting balls. A spring loaded adjustment knob opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles. Dimensions: overall length: 94mm. Socket-to-socket length: 76mm

Base Choices (SELECT YOUR PREFERENCE FROM THE DROP DOWN LIST BELOW):

1. RAM-B-166-202 Twist lock heavy duty suction cup with round plate connector accessory. The RAM twist lock suction cup mount consists of a 3.25" suction cup locking base with a 1" ball attached, a double socket arm and a round plate with drilled hoes including the universal AMPS hole pattern. RAM's patented design dampens shock and vibration helping to extend the life of mobile electronic devices while the rubber ball and socket technology allows for almost infinite adjustment.
2. RAM-B-149ZA-202 U-bolt to fit bar or rail 13mm to 32mm diameter (RAM-B-202 + RAM-B-201-A + RAM-B-231Z)
3. RAP-B-397-1-202 Small Tough-Clamp base (RAP-B-397-1) + Standard Arm (RAM-B-201) + Round Plate (RAM-B-202). The RAM Tough-Clamp™ includes a 1" ball which can be used to mount a variety of products utilising RAM's vast selection of mounting solutions. Attach your GoPro camera, Smartphone, RAM AQUA BOX® Pro or similar light weight device on almost any flat surface, square and round rail. Clamping Dimensions: 1. Flat surfaces and square rails up to 25mm thick. 2. Round rails from 6.35mm to 19mm OD.
4. RAP-B-400-202 Small Tough-Claw (RAP-B-400) + Standard Arm (RAM-B-201) + Round Plate (RAM-B-202). The RAM® Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round and square bars and rails. The Tough-Claw™ can be clamped on rails from 16mm to 38mm outer diameter. Ideal for mounting tablets, action cameras, smartphones, rod holders for rod storage and much more in a wide variety of applications. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more.
5. RAM-B-121 Yoke clamp base + standard arm + round plate. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.
6. RAP-B-397-2-202 Medium Tough-Clamp (RAP-B-397-2) + standard arm (RAM-B-201) + round plate (RAM-B-202). The RAM Tough-Clamp™ includes a 1" ball which can be used to mount a variety of products utilising RAM's vast selection of mounting solutions. Attach your GoPro camera, Smartphone, RAM AQUA BOX® Pro or similar light weight device on almost any flat surface, square and round rail. Clamping Dimensions: 1. Flat surfaces and square rails up to 44.45mm thick. 2. Round rails from 19mm to 28.5mm OD.
7. RAM-B-127B This clamp base is designed to mount to the lip/edge of a flat surface up to 1.12" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application.
